Oil And Water Big Bottle Blow Molding Machine

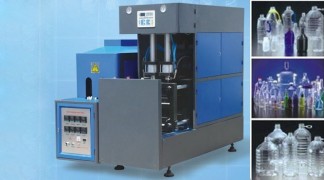

BM S1 5L BLOW MOLDING MACHINE

5-10Liter Oil and Water Bottle Blow Molding Machine

It is suitable for producing PET plastic containers and bottles from 5000-10000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1. Capacity: 300-600pcs/hr
2. Volume of product: 5-10 Liter

Trait of 5-10liter blow molding machine:

Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

  • The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
  • The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
  • The machine can be operated in the step-by-step mode and the semi- auto mode.
  • The machine is small with low investment, easy and safe to operate by one person.

Technique Parameter of blow molding machine:
Container Product material PET
Volume 5L-10L
Theoretical output 300-500PCS/H
Preform length 15mm-460mm
Preform inner diameter Φ15mm-200mm
Moulding Max.mould plate Dimenstion
(L x W) 470x500mm
Max.mould thickness 370mm
Clamping force 100KN
Mould opening stroke 350mm
Machine size and weight Main machine (L x W x H) 1930*720*1830mm
Main machine weight 800Kg
Heater (L x W x H) 1870*630*1450mm
Heater weight 250Kg
Power 17.5kw
