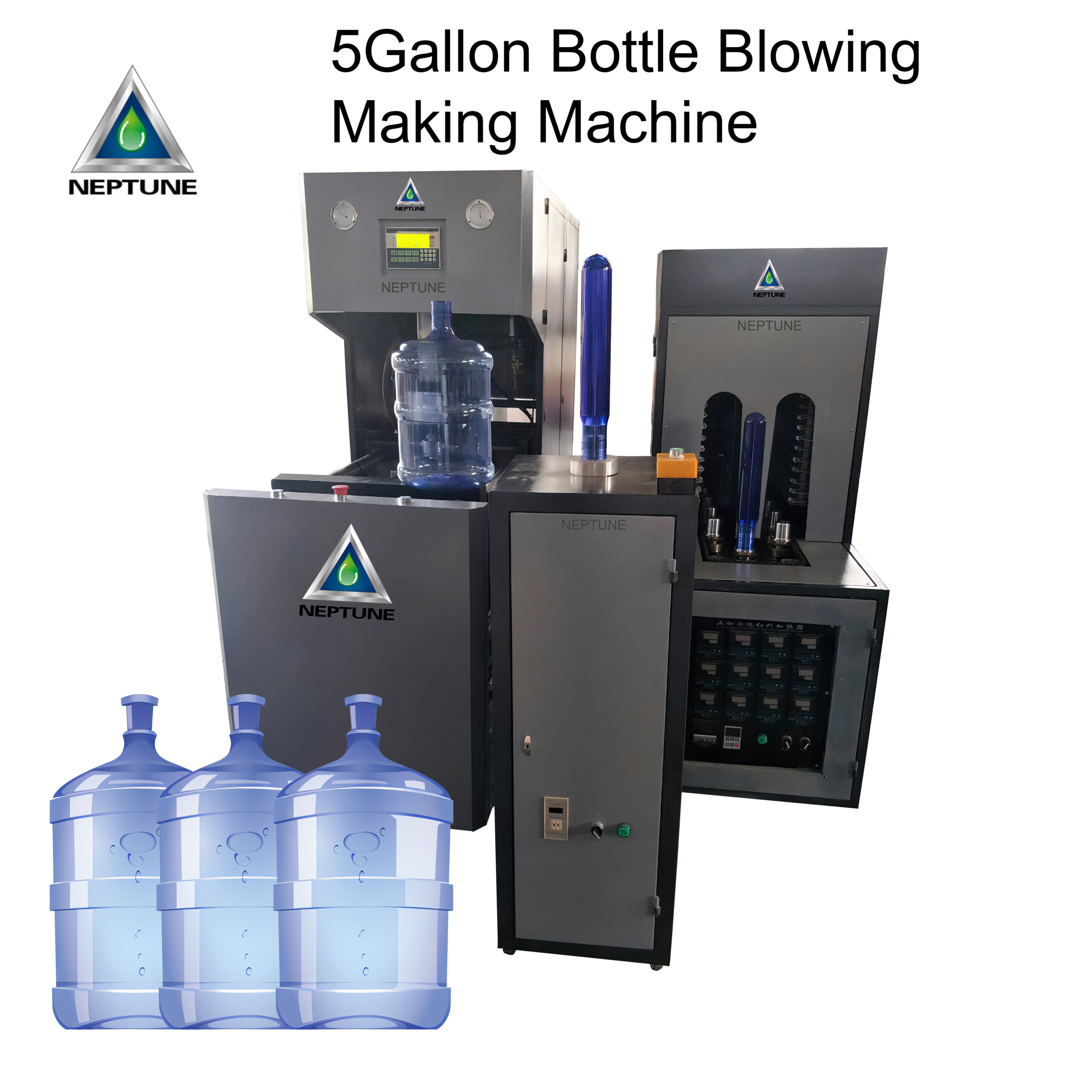

CM-12 Semiautomatic Bottle Blow Molding Machine

CM-12 Semiautomatic PET Bottle Blow Molding Machine
CM-12 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
Engineering Item:
1. Capacity: 60-90pcs/hr (based on bottles)
2. Volume of product: 5-25 liter
Inquire Now


Trait of CM-12 blow molding machine:
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.

Main parameter of blow molding machine:
Model CM-12
Container Product material PET
Volume 10L-25L(3-5Gallon)
Actual output 60-90PCS/H
Preform length 15mm-460mm
Preform inner diameter φ5mm-200mm
Moulding Max.mould plate Dimenstion(L x W) 420x500mm
Max.mould thickness 400mm
Clamping force 330KN
Mould opening stroke 380mm
Machine size and weight Main machine (L x W x H) 218*77*196cm
Main machine weight 1000Kg
Heater (L x W x H) 237*68*165cm
Heater weight 380Kg
Power 40kw

5Gallon Bottle Drawing


Inner heater just for 5 gallon perform
This inner heater is designed for the 5 gallon bottles, because the gram weight of 5 gallon preform is much heavier ,and its paries is much thicker .If it is only heated by rotary heater ,the inner preform is not heated enough ,the brightness of the 5 gallon bottle producted will be not pretty,so this inner heater will solve these problem, So that it will also improve the quality of the 5 gallon bottles.

Trait of CM-12 blow molding machine:
CM-12 blow molding machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.
