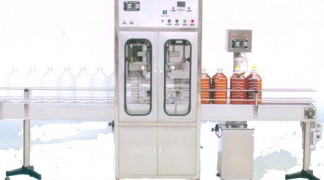

ZLDG series Edible Oil Filling Machine
ZLDG series flow type filling machine is the latest achievements of scientific research personnel. It is in the original model on the basis of production practice, according to the needs, adopt the manufacturer’s opinion, a measuring core technology and equipment, the advanced countries advanced process control technology, the CPU filling by Siemens or omron etc international leading products, import full-color touch human-machine interface, the filling process realized basically a key type, which is other domestic counterparts. In accordance with GMP standard, the enterprise use series products have successfully into the European Union in 2007.


Adaptive: all kinds of high concentration liquid viscosity fluid there

Technical parameters of the edible oil filling machine:
Serial number of ZLDG ZLDG – 2-4, 6-8 – ZLDG ZLDG ZLDG – 10 ZLDG – 12
1 June 8 April 2 filling this December 10
2 filling capacity of 100-10000ml (larger capacity can be customized)
3 production capacity (bottles/hour) 350-500-1000 1000-1500 600 15-16-22 (22) 5L bottle 1800-26
5L (bottle)
4 filling accuracy than 0.5%
5 power frequency 50HZ / 60HZ 3N – 380V soil by 10%
6 power 0.75 KW – 7.5 KW
7 with air pressure 0.5-0.8 MPa
8 work pressure 0.6-0.7 MPa
Note: the productivity by 2 litres bottles and the inlet pressure to 0.15-0.2 MPa

Detail explanation of the oil filling machine:
1, unique designed specially for not drip of falshionable head and back filling system, ensure production site and packing of liquid products from pollution,
2 and 3 per meter high with imported imported PLC computer control full-color touch human-machine interface, easy adjustment of that capacity, fast and accurate. Is any form of volume of filling machine,
3 and filling bottle, bottle filling Angle adjustable easily, high at 0 ~ 45 between specialized design, in order to adapt to the oblique mouth bottle of filling,
4 and flush nozzle is inclined blunt liquid form or straight strong pattern, suitable for different liquid filling, the inclined to rush to the liquid foaming, tsui insert or forms orientation, in order to adapt to the different type of impending filling high product,
5 and the planet cone-disk stepless adjusting device driver of stainless steel flat belt, flexible coordination of synchronous processes,
6, photoelectric tracking, program control by omron etc, world famous programmable controller, make the process more flexible,
7, automatic and semi-automatic pneumatic gland device, pneumatic capping adaptability for different specifications, different shapes and capping design, spinning sound.
Eight, the pneumatic and electric original are imported accessories, ensure stability, excellent quality system,
Nine, can be used for liquid form high liquid pump pressure tank or send the pump pressure, send liquid greatly improve the production capacity,
10 and supporting efficiency by induction sealing device, aluminum foil sealing moisture check and greatly increased product commodity grades. The original sealing device transistor induction plate and cooling system makes the safety and efficiency, excellent sealing.
