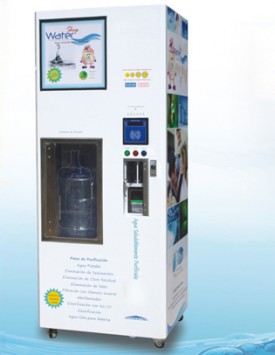

ASV-BZ Automatic Water Vending Machine

ASV-BZ Automatic Water Vending Machine
1.Luxurious waterproof all-steel cabinets, the front door open design, safety and health, durable and easy installation
2.Advanced RO purification techniques, include nine stages effective treatment, purified water quality can reach the national drinking water standards.
3.Coin and intelligent IC card charging technology, both of which can be applied according to client’s demand
4.Airtight filling High concentrations with ozone sterilization, prevent the secondary pollution completely
5.24-hour uninterrupted UV sterilization, guarantee the water quality
6.Advanced digital technology,to control the bussiness situation at any time.
7.The powerful pretreatment,also it can do the backwash for the filters to reduce the cost

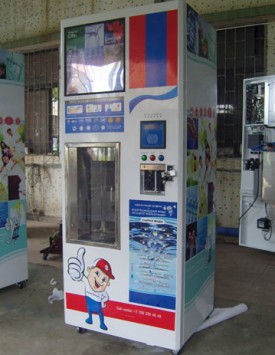

SAV-J RO WATER VENDING MACHINE

SAV-J RO WATER VENDING MACHINE
1.Luxurious waterproof all-steel cabinets, the front door open design, safety and health, durable and easy installation
2.Advanced RO purification technology,nine level effective water treatment, purified water quality can reach the national drinking water standards.
3.Coin and intelligent IC card charging technology, both of which can be applied according to client’s demand
4.Airtight filling High concentrations with ozone sterilization, prevent the secondary pollution completely
5.24-hour uninterrupted UV sterilization, guarantee the water quality
6.Filling compartment has the light, so the guest can detect any impurities in the water directly.
7.Light box and light inspection can be controlled by the photosensitive to save the electricity costs.
8.The powerful pretreatment,also it can do the backwash for the filters to reduce the cost

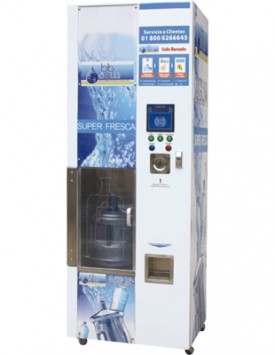

SAV-J RO WATER VENDING MACHINE

SAV-J RO WATER VENDING MACHINE
1.Waterproof all-steel cabinets, the front door open design, safety and health, durable and easy installation
2.Advanced RO purification techniques, include nine stages effective treatment, purified water quality can reach the national drinking water standards.
3.Coin and intelligent IC card charging technology, both of which can be applied according to client’s demand
4.Airtight filling High concentrations with ozone sterilization, prevent the secondary pollution completely
5.24-hour uninterrupted UV sterilization, guarantee the water quality
6.Advanced digital technology,to control the business situation at any time.
7.It’s convenient to replace filters,any easy to maintain.


Introduction of the RO Water Vending Machine
Reverse Osmosis Pure/mineral Water vending machine not only can automatic produce the pure water,but also can automatic sell the the pure water.24-hour self-created for the user to get the clean drinking water. Adopt advanced technology of reverse osmosis filtration , special sterilization process, circuit control of automation digital.Pure water vending machine had been popular in Europe, Japan and South Korea for many years.As one kind of Auto vending machine and station covers an area of only one square meter, Usually water vending machine locations in the community, convenience stores, markets, institutions, schools and other places, Make use of these places cheap rents, stable consumer groups,the owner of the water vending machine’s relationships and other advantages.Now,The automatic vending machine develop from only accept coin into use coin and IC card.

PRINCIPLE OF AUTOMATIC PRODUCING PURE WATER
The pump pressurized the imput water through the multi-channel filters, including activated carbon filter, PP filter, RO membrane, etc., To produce pure water and conservation into the tank.

PRINCIPLE OF AUTOMATIC SELL THE PURE WATER
Through the way of imput coin or use IC card, consumers can get the pure water.Through the water control panel control the out water switch

MAINTENANCE OF RO PURE WATER VENDING STATION
1.Filter, filter cleaning and replacement:
1)If the user can pay attention to the timely replacement of filter element of the reverse osmosis water vending machine, can ensure that the water quality of long-term good, replacing the filter core period based on water quality and mineral composition and decide, or to water quality detector.
The following parameters are for reference only: ( water source for the city tap water)

Quartz sand 1 to 2 years Active carbon for 1 years
Precision filter(PPF) 1 to 3 months Reverse osmosis membrane 1 ~ 2 years
post-carbon filter half year post mineralization filter half year
ultraviolet lamp 3000 ~ 5000 hours ( according to user needs to install )
Ozone generator 1 year ( dry air)
2) More medium filter, adsorption filter replacement method:
A, Replacing time reference value of the time. ( Note: According to the actual water quality status to determine the time of replacing. )
B, In the using period, to keep the two filter periodically backwashing and washing time, flushing time is not less than 10 minutes. ( Note: according to the actual business content to determine the frequency time of washing. )
C, When replacement the filter material of the kinds of filtration,The power,water supply must closed and water had been drained.
D, loose filter fastening clamps, then counterclockwise rotation of the top edge filter flush valve three PVC slipknot, remove the filter. ( Note: when removed from the inside to the outside. )
E, counter clockwise rotation of the top of the filter flush valve, poured filter, remove the center tube, rinse with water filtering barrel inner wall.
F, filled with new media, first into the core tube, and then filling material; filling filter stratified filling, as follows:
1), more medium filter: filter barrel bottom is provided with 10% of coarse quartz sand, then put 40% of the fine quartz sand, quartz sand 40% installed on the top of the rubble.
2), adsorption filter: filter barrel bottom is provided with 10% of coarse quartz sand, then put 40% of the coconut shell activated carbon, installed on the top of 40% coal based activated carbon.
3), the loading process, note the center nozzle with a sponge block, to avoid the loading process of the filter into the central tube, filled
After the removal of the sponge.
4), loading is completed, the center pipe and the filter barrel mouth to keep the circumference concentric, avoid flushing valve cannot be installed.
G, loading is completed, the flush valve clockwise direction, to ensure that no leakage; according to the disassembly of the reverse order is mounted to the machine.
Warning: to replace the filter, you must first of more medium filter and adsorption filter backwash for 20 minutes, until the outlet water becomes clear, flushing must first of more medium filter flushing, flushing of the filter for adsorption!
Flushing adsorption filter process, there will be a black water from the RO concentrated water drainage outlet, please pay attention to pollution!
3) PP filter element replacement method:
A, replacing time reference value of the time. ( Note: according to the actual water quality status to determine the time of replacing. )
B, replacing the filter element, must first turn off the power, water supply and drain water can be replaced.
C, using a random distribution of the fine filter wrench from the bottom of the filter housing cover into the fastening, counterclockwise rotation of filter housing, filter to remove.
D, fine filter periodically removing and cleaning time, washing with clean water to rinse the surface and brush repeatedly brush filter surface.
E, replacing time reference table. ( Note: the replacement of time based on the raw water quality and quantity to decide. )
4) Reverse osmosis membrane cleaning, replacement and preservation:
A, reverse osmosis membrane washing:
1), in normal operation, the machine system is set to reverse osmosis membrane for 24 hours 5 minutes for automatic flushing.
2), such as water quality changes, the need for reverse osmosis force rinse, only need to put the RO flushing selection switch to” artificial” location, the flushing time is 10 ~ 20 minutes, rinse after the switch to” automatic” position.
Warning: when the reverse osmosis in automatic flushing or artificial and compulsive washing, membrane system working pressure is zero, then no regulation” film work pressure regulating valve”, flushing is completed, the pressure automatically restores to normal working pressure; such as artificial regulation, the pressure system and RO have serious injury!
B, Reverse osmosis membrane replacement:
1), when the reverse osmosis membrane water yield decline, water quality deterioration or does not reach the standard, be replaced with a new reverse osmosis membrane.
2), replacing the former must first turn off the power, water supply and drain water.
3), remove the membrane module connected with both sides of pipes, loosen the fixed clamp, taken out of the membrane assembly.
4), remove the membrane formation water side of the membrane head fastening clamps, remove plastic sealing head, pull out the reverse osmosis membrane element.
5), to replace the new film according to removing the steps.
6), when the replacement of the reverse osmosis membrane, must undertake compulsory rinse for 30 minutes, until the output water without preservatives flavors!
C, Short term preservation:
Short term preservation method is applicable to stop operation for 5 to 30 days, the RO membrane element is installed in the system the membrane shell, save the specific steps are as follows:
1), using artificial and compulsive washing reverse osmosis system, while paying attention to the gas from the system completely excluded;
2), the reverse osmosis module and related pipe is filled with water, close the inlet, concentrated water drainage, water outlet valve, preventing entry of gas system;
3), every 5 days in accordance with the method of flushing time.
2, Machine maintenance:
1) Regular maintenance machine integrity, found to be leaking immediately repair;
2) Pay attention to maintaining the electrical part of the drying machine, the plane will not be placed in a damp environment, while avoiding the rain pour and corrosive gas or liquid erosion;
3) If the machine is disabled, except in accordance with the requirements of the reverse osmosis membrane preservation, and shut off the water supply, power off.
Warning: when the new machine is enabled or reverse osmosis membrane liquid medicines immersion after reactivation, please will reverse osmosis stage of pipes and containers of water drain!
