Semi-Auto Blow Molding Machine

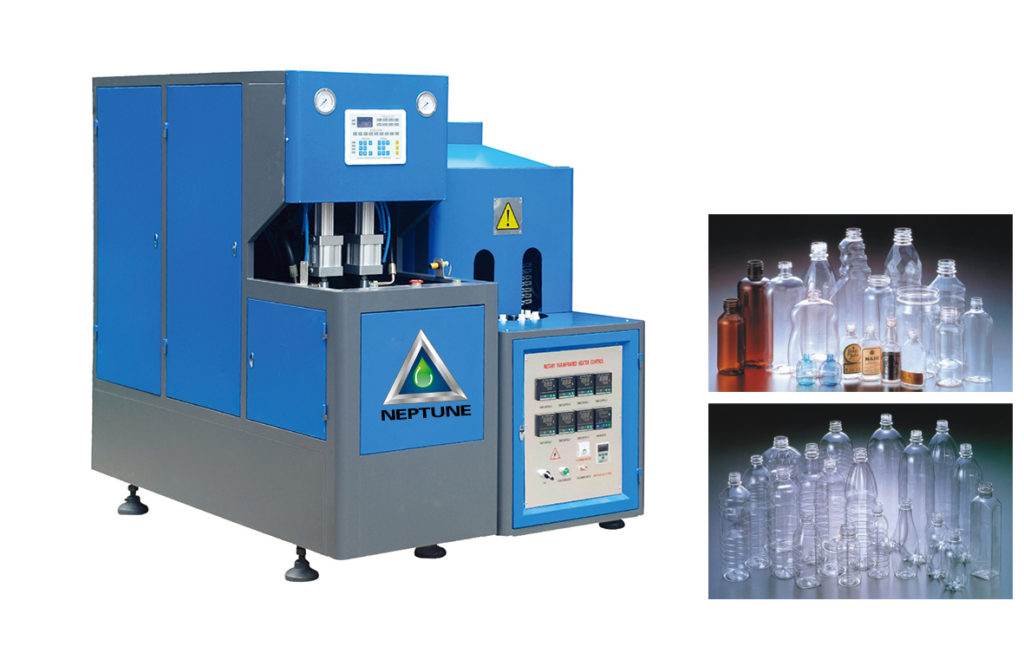

BM S2 BLOW MOLDING MACHINE

0.2-2Liter Botte Blow Molding Machine

Semiautomatic Bottle Blow Molding Machine

Blowing Machine produce plastic hallow containers of PET. It has the advantages of energy-saving, small size, low investment, (fast money back), efficient, and reasonable structure and is widely used in food, medicine, cosmetic, pesticide-killer, chemical and beverage packaging industries.

Introduce

Stretch Blow Moulding Machine is suitable to produce differently shaped bottles from PET tube. It is widely used to produce Mineral water carbonated drink,candy sauce, juice, medicine, cosmetic and oil bottle etc.
The machine adopts revolving infrared pre-heater. It ensures extremely even heating for PET preforms.
The machine uses mechanical-double-arm mould clamping which ensure the mould be closed tightly even in high pressure.
The air system has been divided into two parts: Pneumatic action part and bottle blowing part .
It can provide sufficient and steady high pressure for blowing irregularly shaped large bottles.
The machine is also equipped with a silencer and an oiling pump to reduce noise and friction.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low cost, easy and safe to operate. And it meets the need of beverage manufacturer, polyester bottle producer in city and countryside and is ideal bottle blowing equipment for water bottle.

Plastic pet bottle sample

Structure and functions of the semi-automatic blow moulding machine
Main machine: composed of machine body, closing structure, sealing stretching, and blowing machine, all together four parts.
1. Closing structure is composed of fixed mould plate, moving mould plate, cylinder, and double bending arms and connecting poles. The air source is controlled by the helping of the connecting poles and double bending arms; the plates open and close thereby.
2. The sealing stretching is controlled respectively by two left/right cylinders independently, conducting left and right stretching and sealing. It is also controlled by two solenoid valves of two position and five routes. They can adjust the air blowing retention time of the two cylinders respectively.
3. The air source comes from the second level filter first, and then goes to two big size two-position-three-routes solenoid valves to blow high-pressure air to make bottles from perform .
4.The operation screen is installed with microcomputer controller. It has LCD displaying function, manual or automatic functions switches. They control the time of opening and closing of mould, sealing stretching and blowing. Easy and convenient to operate.
Usage and Character of the semiautomatic blowing machine.
Micro-computer Semi-Automatic Hallow Blowing Machine is the new equipment which produces plastic hallow containers of PET. It has the advantages of energy-saving, small size, low investment, (fast money back), efficient, and reasonable structure and is widely used in food, medicine, cosmetic, pesticide-killer, chemical and beverage packaging industries.
Character:
1. Equipped with microcomputer control, easy to operate.
2. Heating part is IR heating tube, controlled by imported controlling silicon. The moving part is equipped with three phases motor, and drived by frequency changing part.
3. There are left and right cylinders in sealing stretching part. the stretching length can be adjusted automatically, and the time for air blowing can be adjusted freely. the bottle blowing can benefit from doing so.
4. The waste air can be exhausted from a silencer inside the machine. It reduces the possibility of creating water drop, and is prevented from making noise.
5. There are two air storage barrels inside the main machine and one high, one low, pressure-reducing valve.

Shenzhen Neptune major enterprise specializing in research, development and Producing of bottle blowing machines and injection blowing moulds. Relying on abundant scientific research technology, the factory specializes in research, development and manufacturing of bottle blowing machines and injection blowing moulds, its products have been sold all over the world.
Rang of products: CM series full automatic, semi-automatic bottle blowing machines, Various PET preform mould, anti-theft plastic cap mould, bottle blow mould, series of PET bottle preforms, anti-theft plastic cap and
Shenzhen Neptune always carried on advanced design vision and elaborate production technique, improves production technique and strengthens detection certification,we passed ISO9001: 2000 International Quality System Certification and CE Certification. Its high quality products, advanced technology, affordable price and best after-sales service have gained trust from customers.
