Ultrafiltration Water Purification

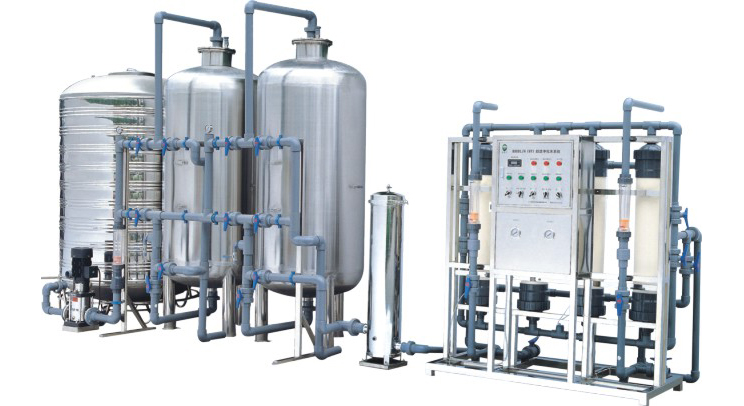

Ultrafiltration Water Treatment System
8ton UF water treatment machine

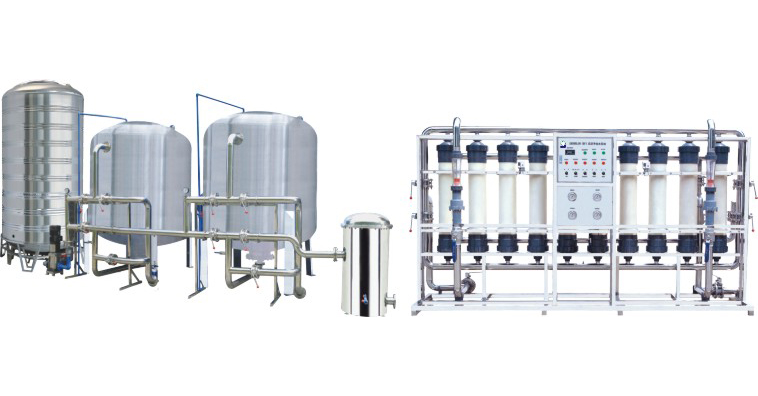

Mineral Water Purification system
10ton UF water filter

Ultrafiltration system is made use of the hollow fiber filtration technology. Basic maily filter included : quartz sand filters+active carbon filter+ Precision filter + hollow filtration.
Ultrafiltration shorter name UF, its pores smaller than 0.01 microns , it can completely filter out bacteria, rust, colloid and other harmful substances of the raw water. But it can keep the original elements and minerals of the raw water.
It is mostly use in the spring/mineral water purification.

In the ultrafiltration process, water flow through the hellow membrane surface under the pressure. Small water and solutes pass through the membrane , Larger than the membrane pores items are retained solute. Ultrafiltration process is dynamic filtration and the separation is accomplished in a flow state.

1. Definition of mineral water
Mineral water is water containing minerals or other dissolved substances like calcium, magnesium, sodium, potassium, silica and bicarbonates, which is healthy to drink.

Our water treatment systems are customized and designed to meet the local water conditions and flow rate requirement. The mineral water treatment equipment utilizes a quartz sand filter, active carbon filter, and PP filter for the treatment of raw water. This process not only removes large particles, odor, color, and some bacteria, but protects back-end UF membranes, which helps prolong the life of the equipment.

The ultrafiltration(UF) membrane functions as the core part of the whole system to produce mineral water. Ultrafiltration (UF) membrane serves as a molecular sieve. It separates dissolved molecules by passing a solution through an infinitesimally fine filter. The ultrafilter is a tough, thin, selectively permeable membrane that retains most macromolecules above a certain size, including colloids, microorganisms and pyrogens. Smaller molecules, such as solvents and ionized contaminants, are allowed to pass into the filtrate. Thus, UF provides retained retentate that is rich in large molecules and a filtrate that contains few, if any, of these molecules.

2. Filter material of Ultrafiltration Water Treatment System
When choosing filter materials, we offer tailor-made solutions in view of corrosion, pressure, vibration and temperature, as per raw water conditions of customers. For example, if TDS of raw water is too high, fiber glass filter tank will be recommended in order to optimize the whole water treatment system.

3. Advantages of Ultrafiltration Water Treatment System
1. Mineral water treatment equipment is able to effectively remove most particles, pyrogens, microorganisms, and colloids that are above rated sizes. Some calcium, magnesium, sodium, potassium, silica and bicarbonates are remained in water.
2. It produces high quality water with the least amount of energy.
3. We provide tailor-made mineral water treatment equipment in accordance with raw water condition and your specific requirements.

4. The water treated by our mineral water treatment equipment tastes sweet.
Specializing in manufacturing Ultrafiltration Water Treatment System in China, Shenzhen Angel Drinking Water Equipment Company provides a range of water purification equipment with complete models. Meanwhile, we also provide water bottling equipment, water filling equipment, wrap shrink packaging machine, and more. Our drinking water equipment has received CE, ETL, UL, and BSI certificates, and is now popular in over 30 countries and regions, such as Mexico, Australia, Canada, Indonesia, India and France, to name a few. If you are in need of the drinking water equipment, please feel free to contact us and try our products. We at Angel are confident that you will be satisfied with your purchase.
