Sticker Labeling Machine

Stiker label machine

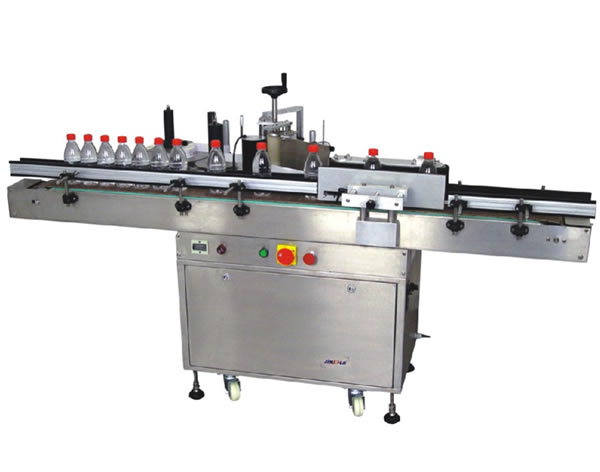

J600 Automatic Stand-up Round Bottle Sticker Labeling Machine
Stickers bottle labeling machine is self-adhesive the rolls labeling paper,continuous torn off  roll labels at the process of conveyor the plastic bottle, automation bottled water packaging machinery paste the label into the required position on the bottle . The form of the device control system with computer programming and English LCD touch screen, text-based and push-button, modern mechatronic products, excellent and reliable performance. Sticker labeling machine is clean, not moldy, after labeling beautiful, solid, does not fall off on their own, the production efficiency.

The machine are adopted the way of stand-up labeling , delivering bottles continuously which follow the straightaway, The speed of feeding labels and labeling bottles are at the same time, labeled stickers are perfect and can label a part or a circuit . It is special suitable for the columniform containers of wine, food, cosmetic and medicaments.
1.Apply to: round container
2.Label speed(Max):150pc/min
3.Label Precision (mm) : +0.5/-0.5
4.Power : 220V 50/60HZ

Video of the opp sticker labeling machine

Technical Parameter of the sticker labeling printing machine:
1) Object to Apply: columniform containers
2) Container Range(mm) : Ø25-Ø120 Height :20-300
3) Label Range (mm) : Length 15-300 Height: 15-110
4) Label Speed (It bears on the size of the container and label) (pc / min) : 0-150
5) Label Precision (mm) : ± 0.5
6) Power : 220V 50/60HZ 0.24KW
7) Weight (kg) : 140
8) Measurement (mm)(Length*Width*Height) : 1800*1000*1100
We can customize your order if you have special demands.
Main Character of the sticker labeling machine :
It can use the label which is made by Chinese material , it reduces many label cost .
Operate easily , debug expediently;
Have the function of counting;
It can use stand-alone or join the production line.
Adopt import electric components .
Adopt 304 stainless steel and alloy which is dealed with anodic oxidation except the shelf.
Choosing Fittings :
J-9Tape printer .
J-6 Automatic feeding plate or collecting plate .
Transparent label sensor:Germany Leuze.
